A Design - Build Sports Bar AV Installation by Benchmark Audiovisual
- Nate Cake
- Jul 30
- 3 min read
Updated: Aug 5
Burger Bar, Cedar Park, TX
📍 Commercial Audio-Visual Installation | Cedar Park, TX | Hospitality AV Systems
Introduction: Creating a Destination Experience
When the team behind The Burger Bar in Cedar Park, TX, set out to build their second location, they knew the AV experience needed to be as bold and inviting as their burgers. From massive screens to crystal-clear sound and a seamless POS network, they wanted it all—done right the first time.
That’s where Benchmark Audiovisual came in.
As Austin’s premier AV design and integration firm, we were engaged from the earliest planning stages to deliver a comprehensive, turnkey AV solution—from concept through grand opening. Spanning nearly 8 months, this project involved enterprise-grade networking, multi-zone audio, a WyreStorm video-over-IP system, and over two dozen large-format Samsung displays—all engineered to elevate customer engagement and simplify staff operation.
Challenges: High-Performance AV in a Fast-Paced Venue
The Burger Bar team had a few key challenges:
Delivering wow-factor video across the entire restaurant—indoors and out
Ensuring uniform, high-fidelity audio coverage across multiple zones
Securing a fast, reliable wired/wireless network for staff, guests, and POS
Designing a system easy enough for non-technical staff to operate with zero stress
Building with future scalability in mind
All of this had to be completed within the constraints of ongoing construction, shifting timelines, and a target opening date.
Solutions & Implementation: Full System Integration by Benchmark Audiovisual
We approached the Burger Bar 2 project with a performance-first mindset, providing a future-ready system backed by robust hardware and thoughtful programming.

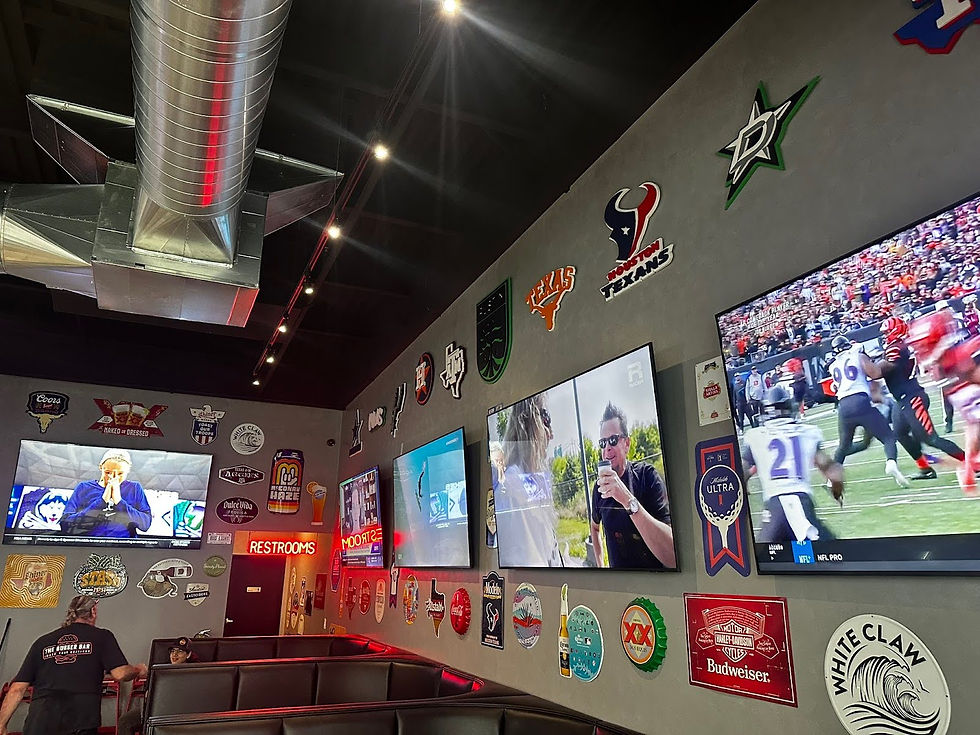

Video System
18x Samsung 85" BE-Series Commercial Displays
4x Samsung 75" BE-Series (Jumbotron-style cluster)
2x Samsung 98" Displays
1x SunBrite 65" Display
Paired with WyreStorm NetworkHD 100/200 Series video over IP, these displays are seamlessly controlled and scaled through a centralized matrix.
Audio System
JBL Control Series Pendant and Surface Mounted speakers and subwoofers deployed for full coverage inside and outside
LEA Professional amplifiers offer multi-zone audio with digital signal processing (DSP)
Two LEA wall-mounted touchscreen controllers provide intuitive, staff-friendly operation:
Interior plate: Adjusts interior zone volume and source
Exterior plate: Manages patio zones independently
Network & Control Infrastructure
Full enterprise-grade wired and wireless network with VLANs
Staff / POS / Guest traffic isolated for speed and security
CAT6 structured cabling throughout for AV, POS, and network traffic
High-capacity UPS battery backup ensures uptime during power events
POS & Operational Reliability
Toast POS terminals received isolated network drops to secure sensitive data
Integrated QoS policies for video and control traffic
All equipment centrally housed in a wall-mounted AV rack on a dedicated 30A circuit
Installation Excellence
We managed every low-voltage run—audio, video, network, and POS—with clean routing, termination, and labeling.
Displays and speakers were installed using professional-grade mounts for aesthetics, durability, and ease of service.
Equipment Overview
Category | Key Components |
Displays | Samsung BE-Series 75"–98" Commercial Displays, SunBrite 65” |
Video Transport | WyreStorm NetworkHD 100/200 Series routed through a single Netgear M4250-SGM4248PX-40P Network Switch |
Speakers | JBL Control Series |
Amplifiers | LEA Professional |
Control | iPad Control & LEA Touchscreen Wall Plates |
Networking | Enterprise-Grade Luxul Router/Switching w/ VLANs & WiFi6 |
Acoustic Treatment Cabling | Primacoustic Broadway Baffles, EcoScapes CAT6 Ethernet – AV, POS, and Wi-Fi |
Power | High-performance Innovolt UPS backup system with Gude 20A Brick on the front-end, and Panamax BlueBolt IP control for the entire Luxul Network, POS System, Video Over IP system, Apple TVs, Security System NVR, Sonos System… |
Results: A Seamless, Scalable, and Stunning AV Experience
Burger Bar 2 now enjoys:
Crisp video distribution with zero latency across all displays
Rich, uniform sound in every area—indoors and out
Easy daily control via intuitive touchscreens—no remotes needed
Secure, fast networking for POS, staff, and guest Wi-Fi
Future-ready architecture, with scalability for additional displays or audio zones
🌟 Client Testimonial from Google:
“These guys were top notch. Very professional and efficient. I would highly recommend them to anyone looking for an AV install. 5 stars all the way.” — Kevin H., Burger Bar, via Google Reviews
Why Benchmark Audiovisual
Based in Austin, TX, Benchmark Audiovisual is a nationally recognized AV integrator delivering elite experiences that blend performance, reliability, and aesthetics. We handle every detail—from system design and cabling to training and post-install support.
For Burger Bar 2, our 8-month partnership led to a flawless launch—on time, on budget, and with rave reviews from staff and customers alike.
📞 Let’s Talk About Your AV Vision
Looking to upgrade your hospitality or restaurant AV systems? Benchmark Audiovisual delivers turnkey AV solutions that impress and perform.
👉 Contact Us Now or call (512) 639.4400
